Industrial production Punch Machinery safety protection 2D laser scanner sensor

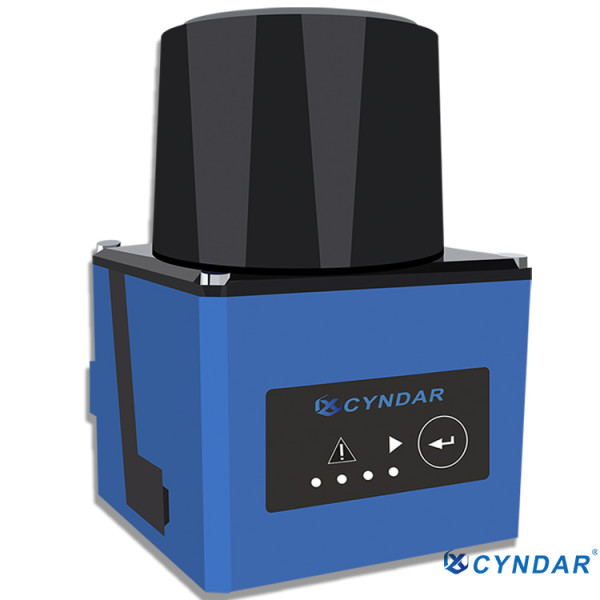

Name: Industrial production Punch Machinery safety protection 2D laser scanner sensor
Brand: CYNDAR
SKU: 18297943
Rating: 4.75 (10 reviews)

Categories	2D safety laser scanner sensor
Brand	CYNDAR
Model	XD-TOF-05D
Ltem category	Two-dimensional switch sensor safety laser scanner
Frequency of detection	15Hz/30Hz
Detection angle range	270º
system error	±30mm
Work area	0.05m-5m
Switch drive	DC30V 50mA
Terms of Payment	T/T, Paypal
Update Time	April 1,2023

Contact Now

Detail Information

product description

Product parameter

Product size drawing and parts

Product application scenarios and others

2D laser scanner sensor can detect ±30mm

Product brochure download(PDF download)

The 2D laser scanner sensor has a very wide range of applications. For example, on the stamping equipment that requires continuous feeding and reclaiming, if a contact safety protection door is installed, the operator needs to open and close the protection door frequently, which not only increases the workload of the operator, but also And it reduces production efficiency. In this case, using 2D laser scanner sensor is a good choice. When the operator feeds and retrieves the material, as long as any part of the body blocks the laser cloud point, the machine will enter a safe state without causing injury to the operator. The density of the laser determines how large the body part can be detected by the 2D laser scanner sensor.

2D laser scanner sensor can also be applied to industries:

forging machine tools, automobile manufacturing, metal stamping, laser cutting machines, bending machines, computer accessories, electronics factories, plastic machinery, paper cutters, automation equipment, forging machine tools, hydraulic machinery, robots, Industrial manipulators, packaging equipment, production lines, three-dimensional garages and other automated equipment can also be used for multi-faceted area protection or anti-theft.

2D lidar sensor uses TOF time of flight for detection

2D safety laser sensor characteristics

●5M distance, 270° angle,

● Use human eye safety protection laser, in line with standards

●Multi-area monitoring

●External device drive (switch provides DC30V 50mA driving force)

●16 kinds of area group settings (quick configuration, fast loading)

●Automatic learning (learning according to field scenes, monitoring contours)

●Pause function, taking into account the production (built-in shutdown and restart functions, with the production line moving countermeasures)

●IP65 dustproof and waterproof

●It is still applicable in harsh industrial environments.

CYNDAR 2D infrared laser scanner sensor safety laser scanner Size

CYNDAR 2D infrared laser scanner sensor safety laser scanner software：There are 2 ways to use the software

Edit interface

Edit bar: used to edit areas and area groups to meet user needs.

Monitoring interface

Display bar: used to display the effect of area editing and point cloud data.

With screw holes can be used to fix 2D infrared laser scanner sensor safety laser scanner parts

1950mm connect to external power cord

With 1000 mm USB cable to connect to the host computer

GND/NC*4,( Users can request PNP*3 or NPN *3when purchasing)

With screw holes can be used to fix 2D infrared laser scanner sensor safety laser scanner

Product application scenarios and others

Packaging production line-protection of personnel around the paper cutter

Application requirements: There are multiple processes in the personnel protection process around the paper cutter. In different processes, people or machines will enter various areas. We need a safety laser scanner to ensure our safety

Access of 2D safety laser scanner on the press line for safety protection

Processing tables and cutting machines are very dangerous areas. The use of 2D lidar can protect people safely

Use 2D laser scanner sensors to safely protect the conveyor and avoid collisions

The safety laser scanner device can be set with 1-16 safety areas, which can protect the position without guardrail

company situation

KeyWords

Review

Loading...

Item category	2D laser scanner sensor security scanner	product code	XD-TOF-05D
I/O output (selection)	NPN(Can be set to normally open or normally closed)	Recognizable body shape	Almost any shape
I/O output (selection)	PNP(Can be set to normally open or normally closed)	system error	±30mm
Laser safety level	905nm(class I)	Number of working areas	16 area groups, each area group contains 3 areas
Scanning frame rate	15Hz/30Hz		Micro-USB
Scanning angle	270º	I/O input	Micro-USB
Scan angle resolution	0.1 º/0.3°	I/O input	GND/NC*4
Detection distance	0.05m-5m	I/O output	PNP3 Equipment working status indication1
With self-learning button	Automatically scan the environment, generate area	Signal output hold time	100ms-10000ms (adjustable) 330ms typical
Electrical link	DB15MALE/discrete line	Reaction time	67ms-30000ms (adjustable) 134ms typical
Operating Voltage	DC9V-28V	Status Indicator	Status indication1, area group indication3
power	2W	Anti-vibration	10-55Hz, amplitude 0.75mm, XYZ triaxial, 2 hours per axis; 50-200Hz, 196m/s² (20G), scanning speed 2min/x cycle, XYZ triaxial, 2 hours per axis
Switch drive	DC30V50mA	range of working temperature	905nm(class I)
Shape tone	Color blue	Storage temperature range	15Hz/30Hz
Waterproof and dustproof grade	IP65	Environmental illuminance range	270º
body weight	150g body weight (without cables)	Specification (length * width * height)	50mm50mm76mm
