Home > Products > Measurement/counting/data detection safety light curtain sensor > CLT measurement type safety light curtain sensor >

The self-detection technology of this instrument can be used for correction and verification,

The self-detection technology of this instrument can be used for correction and verification,

The self-detection technology of this instrument can be used for correction and verification,
The self-detection technology of this instrument can be used for correction and verification,The self-detection technology of this instrument can be used for correction and verification,The self-detection technology of this instrument can be used for correction and verification,The self-detection technology of this instrument can be used for correction and verification,The self-detection technology of this instrument can be used for correction and verification,
CategoriesCLT measurement type safety light curtain sensor
BrandCYNDAR
ModelCLT
Protection heightOptical axis spacing × (number of beams-1)
Current consumption≤200mA
Detection accuracy2-45mm
Update Time2021-06-23
Detail Information
The self-detection technology of this instrument can be used for correction and verification,

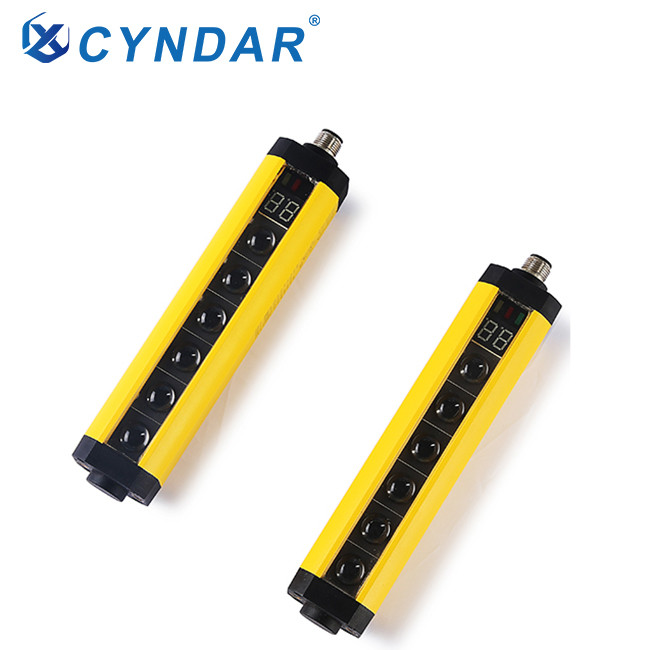

CLT Specification Sheet
Product Features

The role of safety light curtain in measuring the appearance and size of objects nowadays has become more and more clear. Through the measurement of size, the light curtain emits infrared rays to directly measure the relevant object size data, and it can also be processed by subsequent computer. The use of this size measurement data for the regulation of items and the adjustment of the product production chain, and the application of the size measurement light curtain sensor is not limited to this.

Four points for attention when choosing a measuring light curtain

1) Pay attention to safety light curtain resolution, measurement technology effect and corresponding inspection quality

2) The high-level and high-reliability light curtain safety barrier itself determines the actual quality of the user's subsequent product inspection, and the current equipment for measuring photovoltaic quality assurance has a more stable detection effect.

3) At the same time, its light curtain safety device and a series of numerically controlled instruments are more stable during use, and can effectively realize synchronous control and technical adjustment.

4) The self-detection technology of this instrument can be used for correction and verification, so that this high-quality measuring light curtain can be accurately and safely detected and disposed of, so that the stable and reliable technical advantages of safety light curtain can be used to maintain the quality of detection.

Light curtain form

Opposite

Optical axis spacing

1.25mm

2.5mm

5mm

10mm

20mm

40mm

Detection accuracy

2mm

3.75mm

6.5mm

15mm

25mm

45mm

Number of beams

64/96…480

32/48…480

16/24…480

8/10…480

4/6…480

4/6…480

Protection height

Optical axis spacing × (number of beams-1)

Detection distance

30~3000mm, 30~6000mm, 30~10000mm

Dimensions

36×36×Lmm (L is the length of the emitter/receiver)

voltage

DC12/24V AC110-220V (with controller, relay passive output)

Current consumption

≤200mA

Output

RS485/RS232 I: 4-20mA U: 1-10V

Connection method

Waterproof round aviation socket with special link cable, 7/5 core for emitter and 7/5 core for receiver

Output state

When all optical axes receive light, the LED will display 00

Indicator light

Emitter: power indicator (red); receiver: output indicator light (green) shading (red)





Component
Seven core interface
Mounting brackets
Seven-core data cable
Swivel arm (aluminum alloy)
Shape
Wiring diagram
What are the applicable ranges of volume measurement light curtains

Applied in the high-precision machining industry, Industrial automation safety light curtain detects, measures or recognizes objects.

It is well known that in the field of mechanical processing in China, various equipment must be used to achieve better control of the accuracy of processing, especially the volume measurement infrared light curtain can achieve better volume measurement and estimation through the emission of light beams, some high precision In order to ensure that more sophisticated instruments are produced, the volume measurement safety curtain sensor is used to ensure that each product is more seamless. Therefore, volume measurement light curtains are widely used in the processing and application of mechanical products in China, especially in Under the application of China's automated CNC machine tools, the volume measurement light curtain is an important weapon to improve accuracy;
