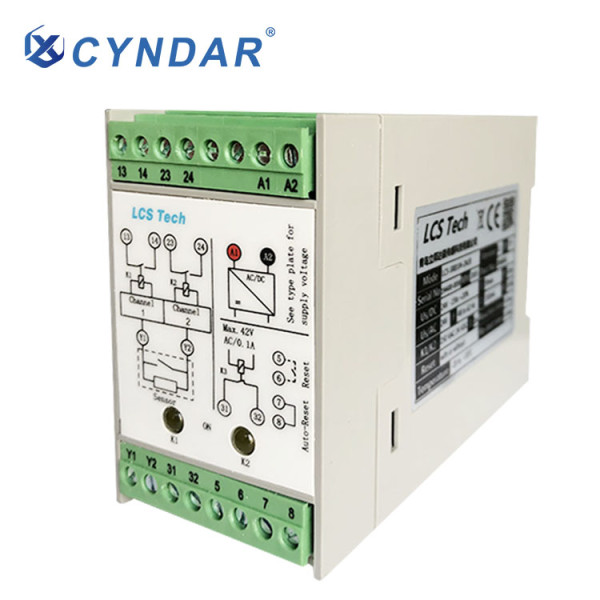

Safety relays used in the power industry can be used to switch on or off voltage.

Name: Safety relays used in the power industry can be used to switch on or off voltage.
Brand: CYNDAR
SKU: 18298998
Rating: 4.75 (10 reviews)

Categories	Safety relay for controlling safety sensor
Brand	CYNDAR
Model	LCS
Reset method	automatic / manual
Terminating resistor	1.2KΩ
Trigger resistance	≤400Ω
Update Time	September 28,2023

Detail Information

Product size drawing and parts

Product application scenarios and others

Product Features

Voltage relay is a commonly used electromagnetic relay. Safety control relays are used for voltage protection and control of electric drive systems. The coil is connected in parallel to the main circuit to sense the line voltage of the main circuit; the contact is connected to the control circuit and is an actuator. According to the size of the pull-in voltage, safety relays for machinery can be divided into over-voltage relays and under-voltage relays. Over-voltage relay (FV) is used for line over-voltage protection, and its pull-in setting value is 1.05 to 1.2 times the rated power of the protected line. When the voltage of the protected line is normal, the armature will not operate;

Precautions for using safety control relays:

1) The safety relay is a non-maintenance product. Do not disassemble the safety relay or replace the parts inside the safety relay without authorization.

2) Please check the power supply voltage before use. It must be the same as the voltage indicated on the safety relay nameplate.

Comply with the protection level of components, safety control relays can only be installed in the environment with the lowest protection level of IP54 (control

Cabinet).

3) When the safety relay is installed in the switch cabinet, it should keep a distance> 20mm from the adjacent heat dissipation components.

4) When connecting the power supply voltage, please pay attention to the distribution of safety relays wiring terminals.

5) It is not possible to solder and wire directly to the terminals of the safety relay.

KeyWords

Review

Loading...

project	model	LS-SRA104-2A1B	LS-SRA134-2A1B	LS-SRB104-2A1B	LS-SRB134-2A1B
Test principle		EN1760-1,EN1760-2,EN12978,ISO13849-1
Types of safe products used		Safety carpet, safety touch edge, safety buffer series, etc.
Security Classification	Performance level	Ple	Ple	Ple	Ple
Security Classification	safety class	Cat3	Cat3	Cat3	Cat3
life	Mechanical life	＞3 million times	＞3 million times	＞1 million times	＞1 million times
Conditions of Use	Reset method	automatic / manual	automatic / manual	automatic / manual	automatic / manual
	Use voltage	AC/DC 24V	AC 220V	AC/DC 24V	AC 220V
	Protection current	192MA/89MA	48mA/28mA	192MA/86MA	48mA/28mA
Relay input	Terminating resistor	1.2KΩ	1.2KΩ	1.2KΩ	1.2KΩ
	Trigger resistance	≤400Ω	≤400Ω	≤400Ω	≤400Ω
	Cable resistance	≤100Ω	≤100Ω	≤100Ω	≤100Ω
	Switching threshold	＜600Ω	＜600Ω	＜600Ω	＜600Ω
Relay output	Switching current (min/max)	10mA/2A	10mA/2A	10mA/2A	10mA/2A
	Switching capacity (max)	5A/24VDC	5A/220VAC	5A/24VDC	5A/220VAC
Security Classification	EN 1760-1 reset command	stand by
	ISO 13849-1:2015	Cat.3 Ple
	MTTFd	＞30 years
	B10d	3*107
	Nop (accepted)	52560/year
	Protection level	IP20
