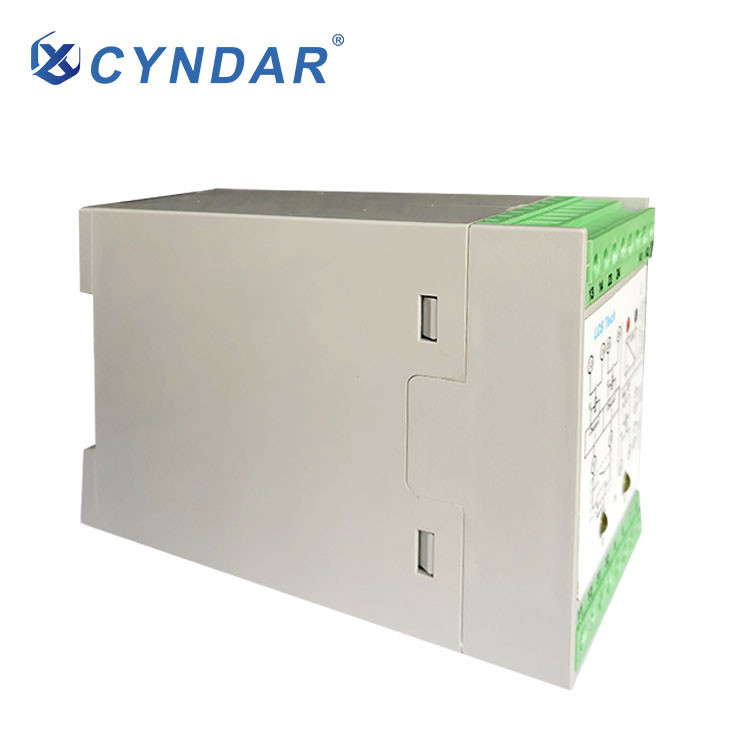

Installation of safety relays on production line equipment to protect operators

Installation of safety relays on production line equipment to protect operators

Installation of safety relays on production line equipment to protect operators
Installation of safety relays on production line equipment to protect operatorsInstallation of safety relays on production line equipment to protect operatorsInstallation of safety relays on production line equipment to protect operatorsInstallation of safety relays on production line equipment to protect operators
CategoriesSafety relay for controlling safety sensor
BrandCYNDAR
ModelLCS
MTTFd>30 years
Protection levelIP20
Nop (accepted)52560/year
Update Time2021-06-18
Detail Information
Product Features

The influence of current ratio on relay reliability: The so-called current ratio is the ratio of the working load current of the relay to the rated load current. The current ratio has a great influence on the reliability of safety control relays, especially when the current ratio is greater than 0.1, the mean time between failures drops rapidly, and when the current ratio is less than 0.1, the mean time between failures is basically unchanged, so it should be used in circuit design The load with a larger rated current can reduce the current ratio, so that the reliability of the relay and even the entire circuit will not be reduced due to the fluctuation of the operating current.

Precautions:

1) In order to maintain the performance of safety control relays, please be careful not to drop safety control relays or subject them to strong impacts. It is recommended not to use the relays that have fallen.

2) Use safety control relays as much as possible in an environment with room temperature and humidity, with little dust and harmful gases. Harmful gases include gases containing sulfur, silicon, and oxidation.

3) For magnetic latching relays, they should be placed in action or reset as needed before use. Pay attention to the polarity and pulse width when applying voltage to the coil.





project

model

LS-SRA104-2A1B

LS-SRA134-2A1B

LS-SRB104-2A1B

LS-SRB134-2A1B

Test principle

EN1760-1,EN1760-2,EN12978,ISO13849-1

Types of safe products used

Safety carpet, safety touch edge, safety buffer series, etc.

Security Classification



Performance level

Ple

Ple

Ple

Ple

safety class

Cat3

Cat3

Cat3

Cat3

life

Mechanical life

>3 million times

>3 million times

>1 million times

>1 million times

Conditions of Use





Reset method

automatic / manual

automatic / manual

automatic / manual

automatic / manual

Use voltage

AC/DC 24V

AC 220V

AC/DC 24V

AC 220V

Protection current

192MA/89MA

48mA/28mA

192MA/86MA

48mA/28mA

Relay input







Terminating resistor

1.2KΩ

1.2KΩ

1.2KΩ

1.2KΩ

Trigger resistance

≤400Ω

≤400Ω

≤400Ω

≤400Ω

Cable resistance

≤100Ω

≤100Ω

≤100Ω

≤100Ω

Switching threshold

<600Ω

<600Ω

<600Ω

<600Ω

Relay output

Switching current (min/max)

10mA/2A

10mA/2A

10mA/2A

10mA/2A



Switching capacity (max)

5A/24VDC

5A/220VAC

5A/24VDC

5A/220VAC

Security Classification

EN 1760-1 reset command

stand by

ISO 13849-1:2015

Cat.3 Ple

MTTFd

>30 years

B10d

3*107

Nop (accepted)

52560/year

Protection level

IP20

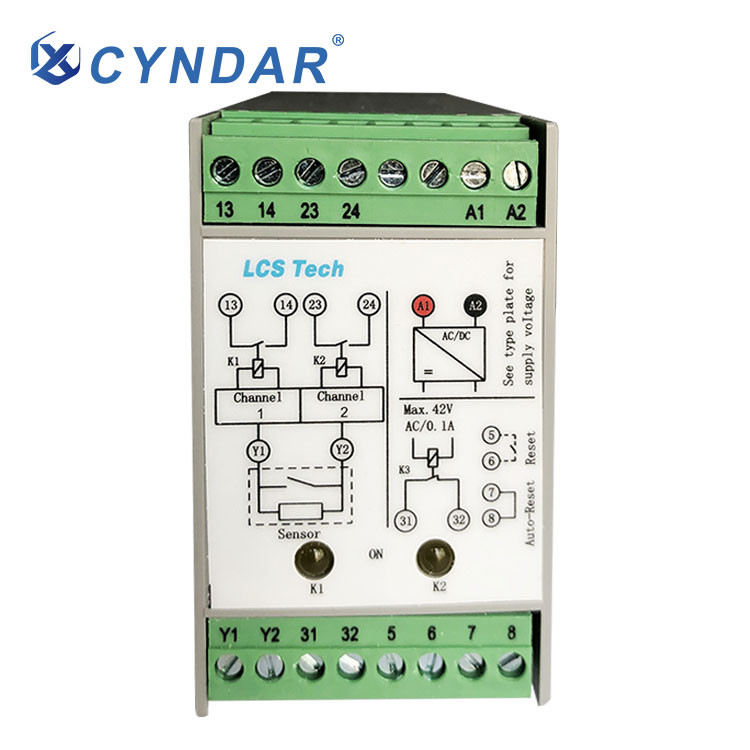

Terminals

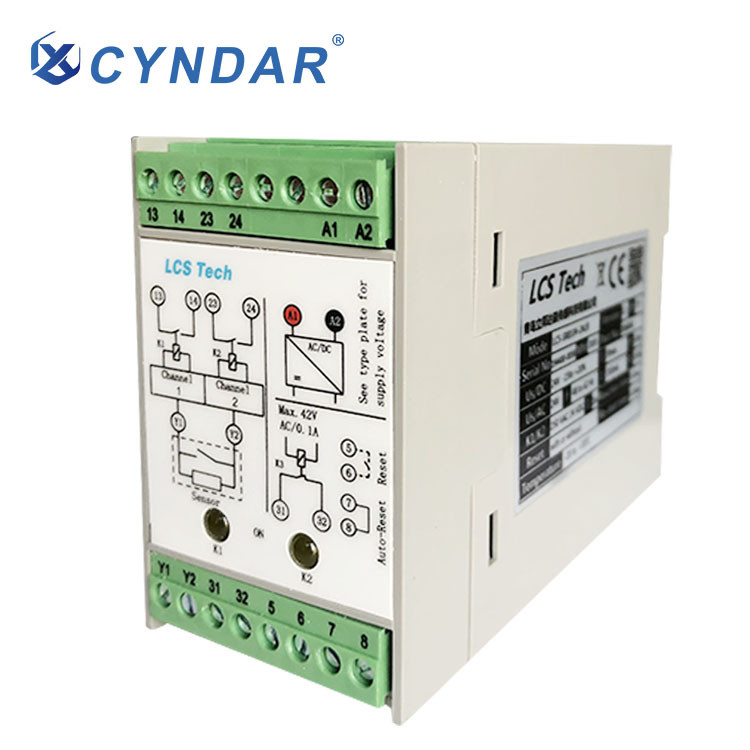

Appearance and installation standards
Function and application:

In the steel industry, whether it is cold rolling, flattening production lines, or uncoiling, cutting, and recoiling of whole steel coils, there is a risk of harm to operators and maintenance personnel. At the same time, unexpected accidents during the production process will also cause serious damage to the machine and equipment, so we invite emergency stop equipment to stop the abnormal operation of the machine to reduce accident losses and the safety of operation and maintenance personnel. The operator and maintenance personnel must be protected by installing safety doors, safety mats, and using emergency stop buttons. Must use safety control relays.
